Discover the superiority of high performance lighting. DL1 delivers an impressive 1200 lumens of high quality, 92 CRI light via a fresh and sleek fitting. Set the mood and flexibly illuminate your space for any occasion with a deep dimming range of 1-100%*. Our downlights consume less power and can last even longer when dimmed.

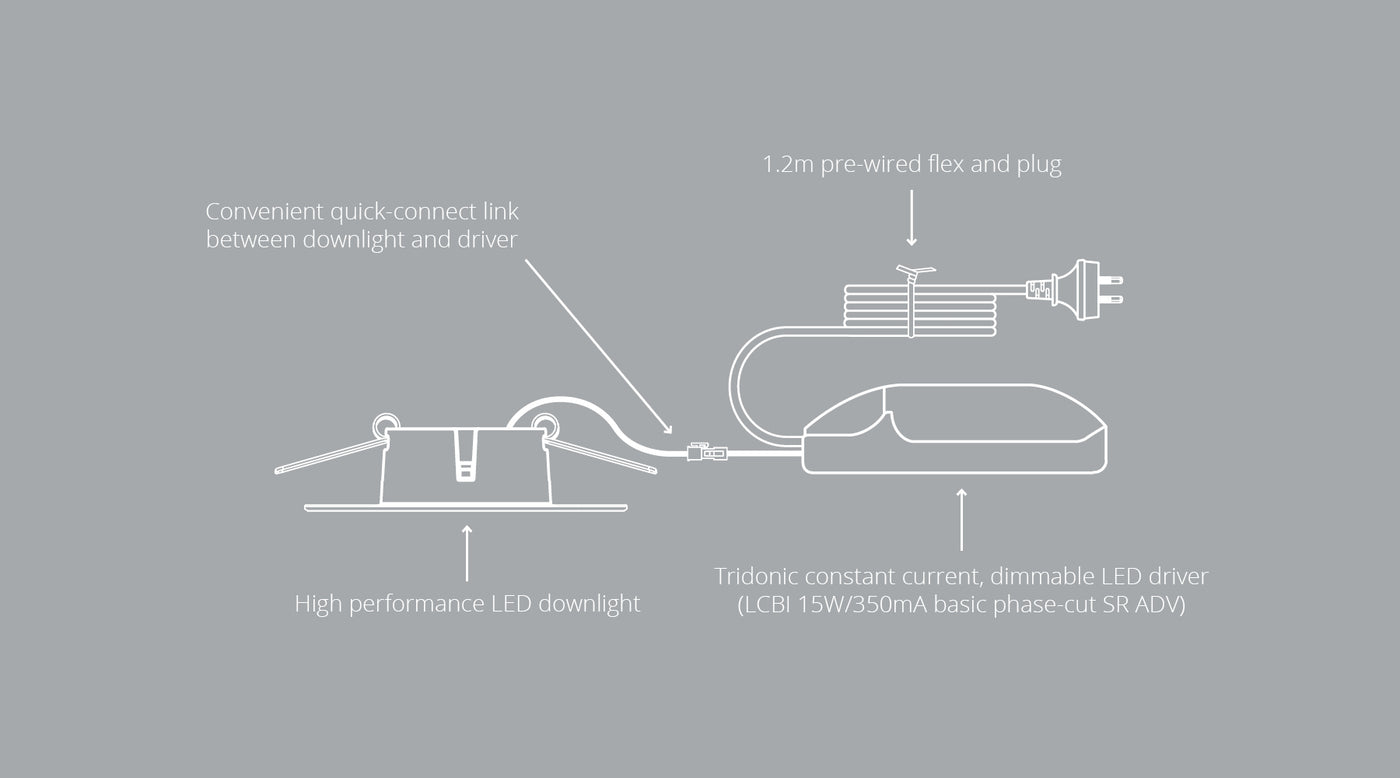

We've partnered with the industry's best to ensure our electronics are the most advanced and reliable available. DL1 comes complete with a perfectly matched dimmable, external Tridonic driver and features market-leading Cree LED chips.
*Depending on dimmer model and configuration

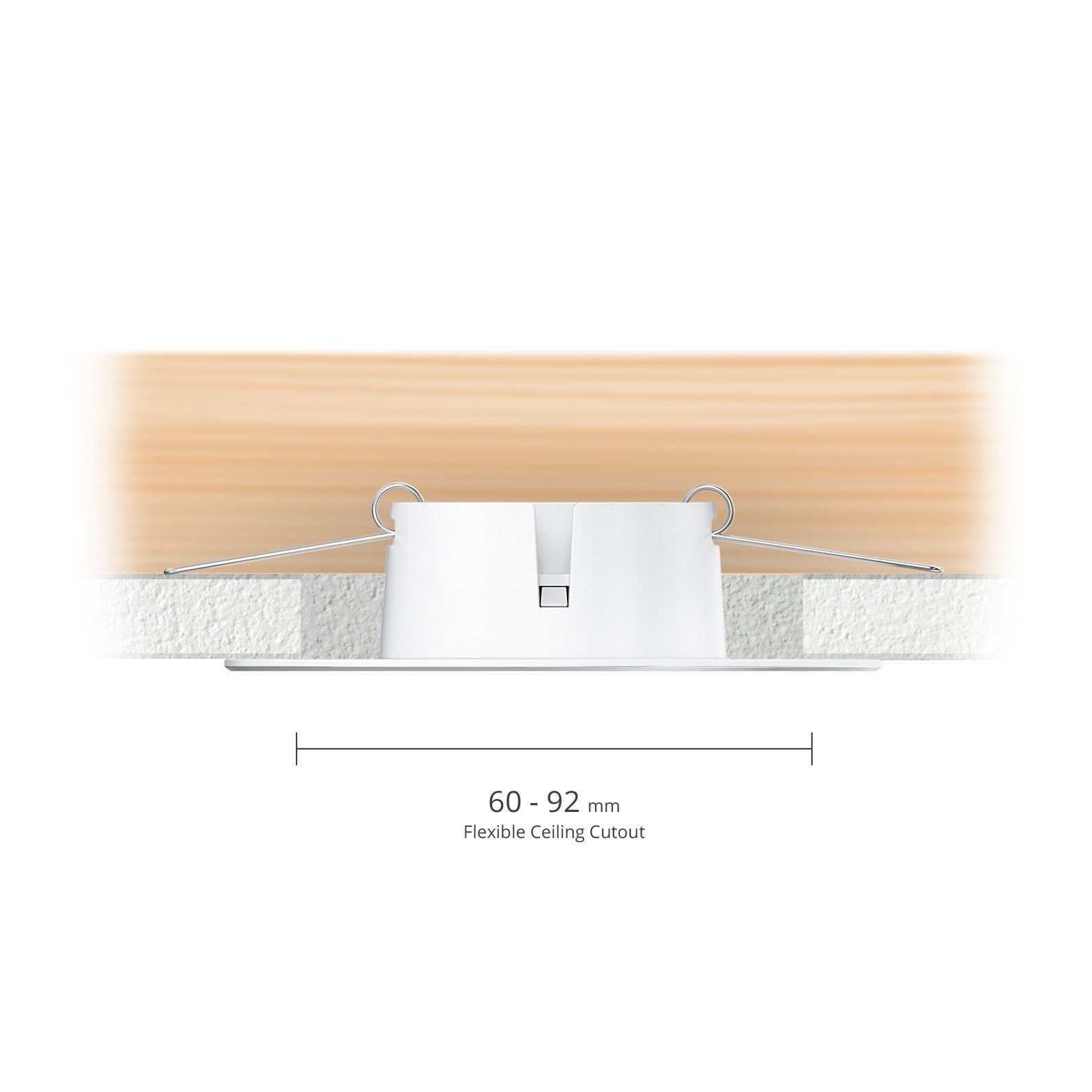

DL1 fits into existing ceiling cut-outs ranging from 60-92mm. This allows old halogen downlights to be replaced without the need for messy and costly ceiling modification work.
It is also an ultra slim 29mm deep, meaning shallow roof cavities are no issue.
The clever, sealed design has eliminated the possibility of air flow to and from the roof space. This assists with climate control and prevents the ingress of dust and insects. The DL1 downlight’s insulation rating is IC-4, the best thermal rating possible.

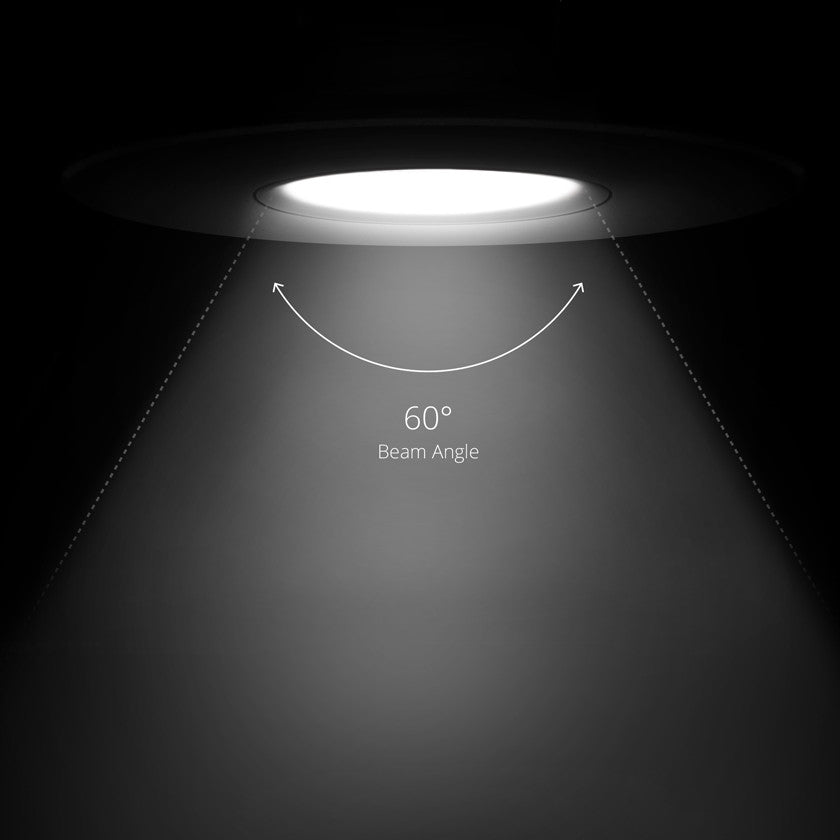

DL1 has been engineered with your comfort in mind. Sophisticated Chip on Board (COB) LED technology has been paired with advanced, long-life and shatterproof silicone optics to protect the chip while delivering bright, evenly-focused and low-glare illumination.
The market is littered with downlights that use surface-mounted LEDs (SMD). These generate diffused light and irritating glare.
DL1 is easy on the eyes in more ways than one.

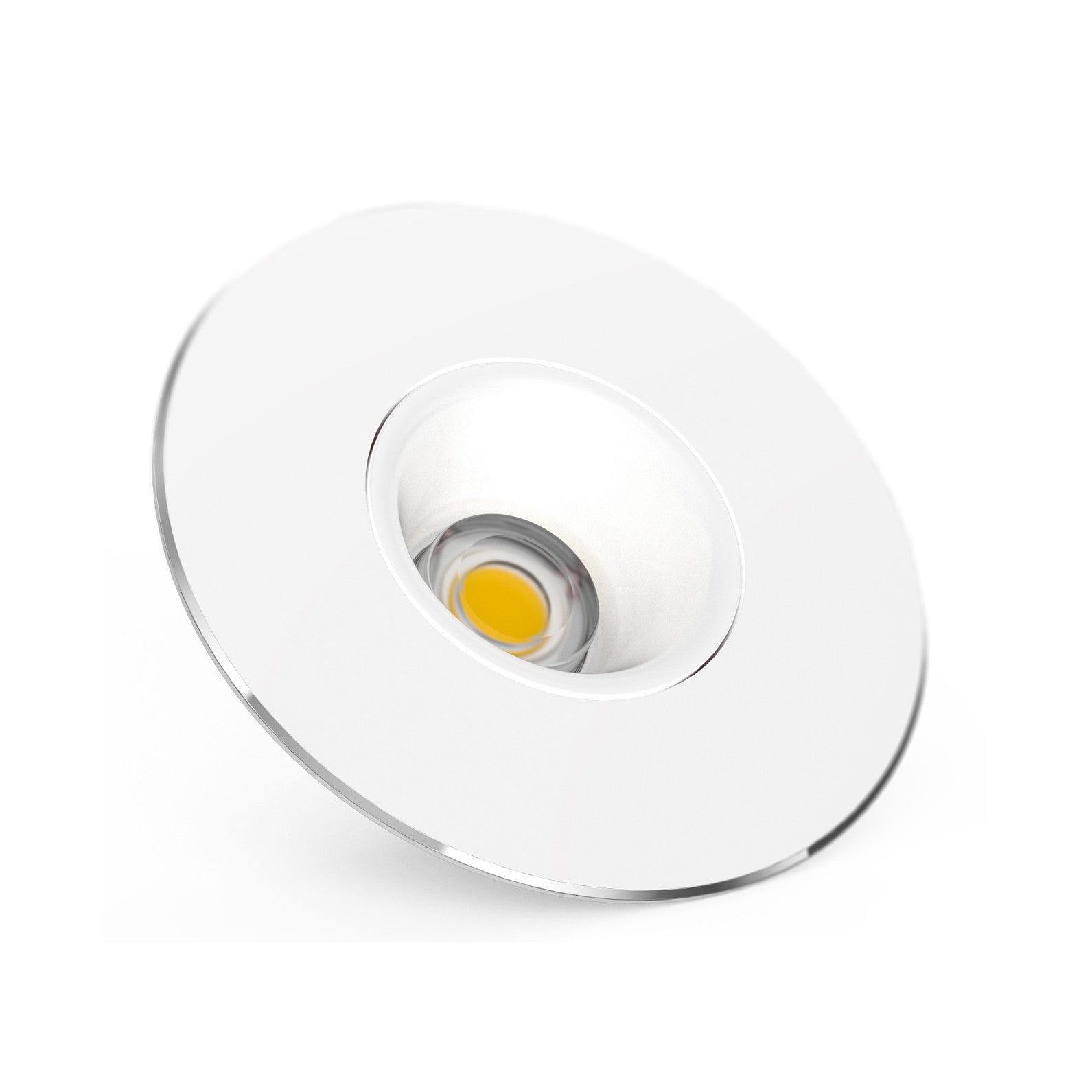

Install and enjoy trouble-free lighting for an extremely long time. The DL1 downlight has an L95 lifetime of over 66,500 hours thanks to its superior design, high performance thermal management and state-of-the-art components.
This exceptional lumen maintenance figure has been extrapolated by an independent, NATA-accredited laboratory from data collected during more than 11,000 hours of IES (Illuminating Engineering Society) LM-80 testing using their recommended TM-21 method.
Producing more than 11 lumens per gram, DL1 gives you a higher light output derived from less of our planet’s resources; all while delivering ultra-long life, high quality, energy saving light. You'll enjoy the most luxurious lighting while saving money and caring for the environment.
HIGHER OUTPUT. LONGER LIFE. LOWER MATERIAL USAGE.
*Custom finishes and alternative drivers (DALI, fixed output etc) are possible with large orders. Please contact us with your requirements.

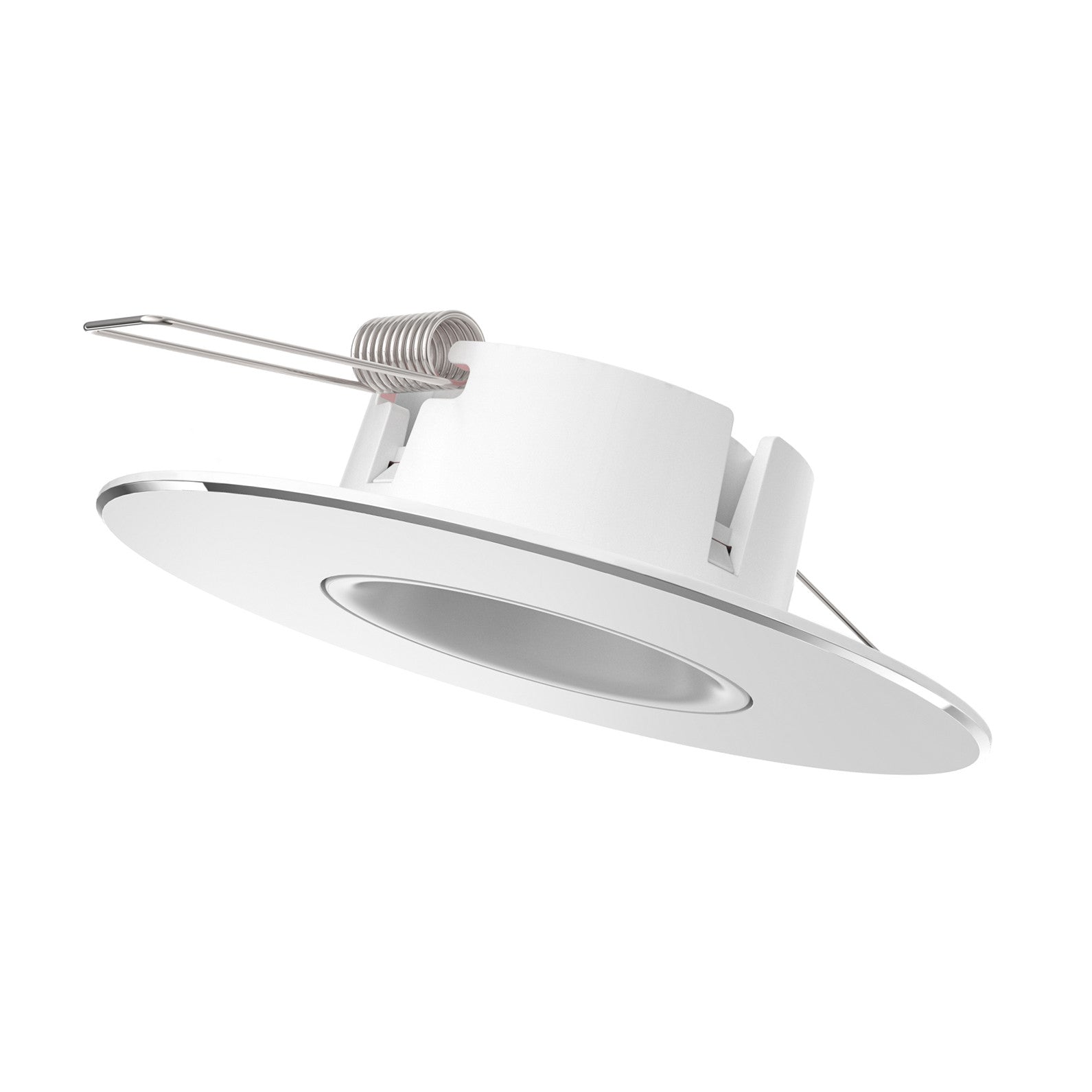

The Oxman Lighting DL1 LED downlight features an innovative, world-class design and revolutionary approach to thermal management. This makes it more powerful, efficient and durable, yet also sleeker and more compact. It directly benefits customers and the environment by using substantially less raw material while also excelling in output, versatility and lifetime. Key to achieving this is its proprietary, light weight and highly effective Total Surface Heat ExchangerTM which replaces the bulky, inefficient heatsink used by other lights (discover the ground breaking science behind our cooling technology here). An elegant, architectural look with signature silver rim complements DL1’s high performance. The real magic happens when the light is turned on; a beautiful, bright light to perfectly illuminate your space.
|Higher output||1200 lumens (dimmable), 92CRI, 14.5W.|
|Longer life||The DL1 downlight has an L95 lifetime of over 66,500 hours in 45ᵒC ambient while covered with insulation. Many other suppliers quote figures at 25ᵒC ambient; this doesn’t reflect Australian conditions.|
|IC-4 rated||The DL1 downlight can be covered with insulation to save on climate control and energy costs.|
|Superior environmental credentials and efficiency||The DL1 downlight is a stand-out when it comes to material usage and therefore environmental sustainability. It requires only 0.1kg of material, whereas comparable fittings from other suppliers can weigh more than 5 times as much due to their large heatsinks. The low material usage and ultra-long lifetime make it one of the greenest downlights on the market, all while excelling in style and performance.|
|Easily retrofittable||No costly site modification work when replacing old halogen fittings. The DL1 combines a large flange with a compact body to permit installation in ceiling cut-outs ranging from 60-92mm in size. Other comparable downlights generally need large openings to accommodate their large bodies.|
|The slimmest COB downlight available||The depth of 29mm means it will fit in shallow roof cavities.|
|Silicone optics||Silicone optics control the light beam to provide crisp illumination with superb light spread. Additional benefits are excellent protection and long-term thermal/optical stability with no risk of breakage or discolouration.|
|Unique, ultra-modern appearance||Elegant look with signature silver rim.|
|Brand name components||The Cree LED chip and Tridonic driver complete the kit for all-round excellent performance and reliability.|
